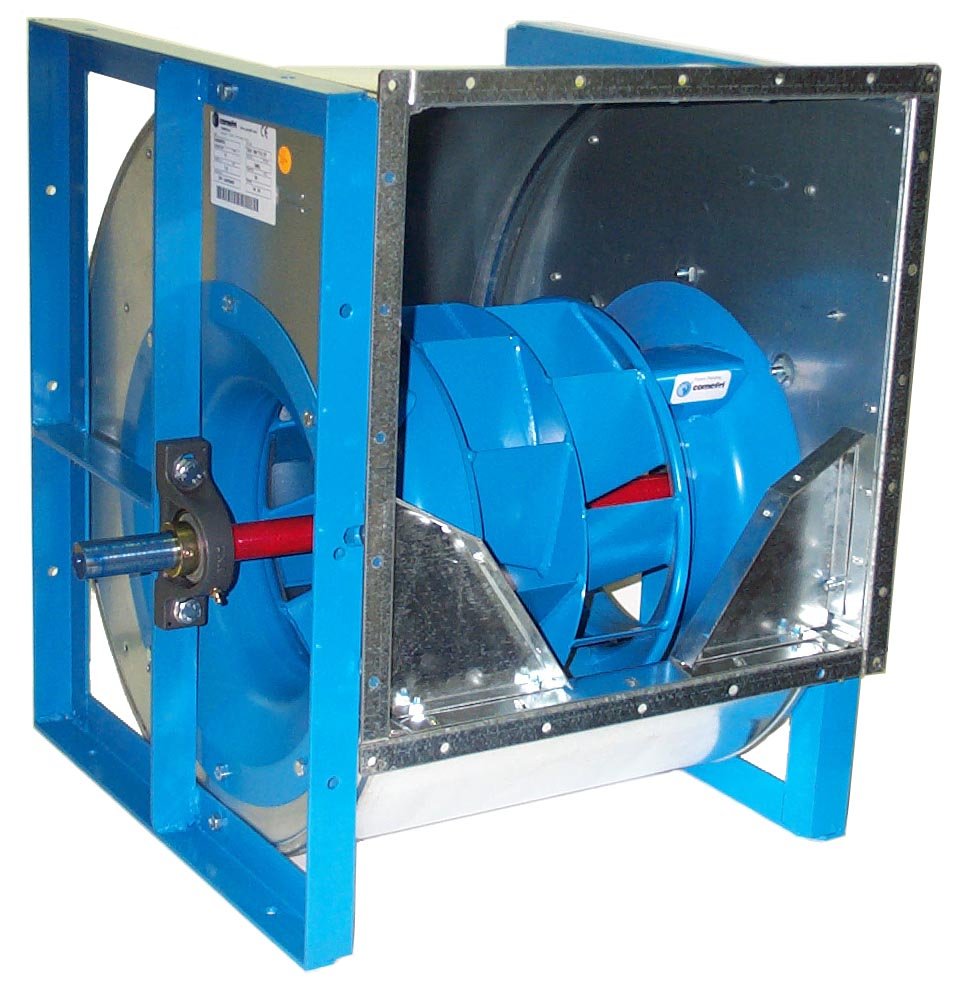

THLZ/VTZ Double Inlet Backward Curved Centrifugal Fan

—Double inlet ，backward curved, belt driven

—Size from 180 to 1，000mm(impeller diameter)

—Volume from 500 to 110，000m3/h

—THLZ series:Ps max=2，200Pa

—VTZ series:Ps max=2，400Pa

NTHZ HVAC Double Inlet Fan With Backward Curved Blades

—Backward Curved Blades，11 blades，belt driven

—Size from 315 tp 1，250mm(Impeller diameter)

—Air volume from 2,000 to 240，0 00m3/h

—Ps max=3，700Pa

—Advantage：Forefinger ®, is actively readdressing this air recirculation to the outlet, with a systematic enhancement of the performances, both aeraulic and acoustic.

TZAF-FF HVAC Double Inlet Fan With Airfoil Backward Curved Blades

—Airfoil Backward Curved，10 blades，belt driven

-Size from 315 to 1，250 mm(Impeller diameter)

—Air volume from 2,500 to 240，000m3/h

—Ps max=4，000Pa

—Forefinger ®, is actively readdressing this air recirculation to the outlet, with a systematic enhancement of the performances, both aeraulic and acoustic.

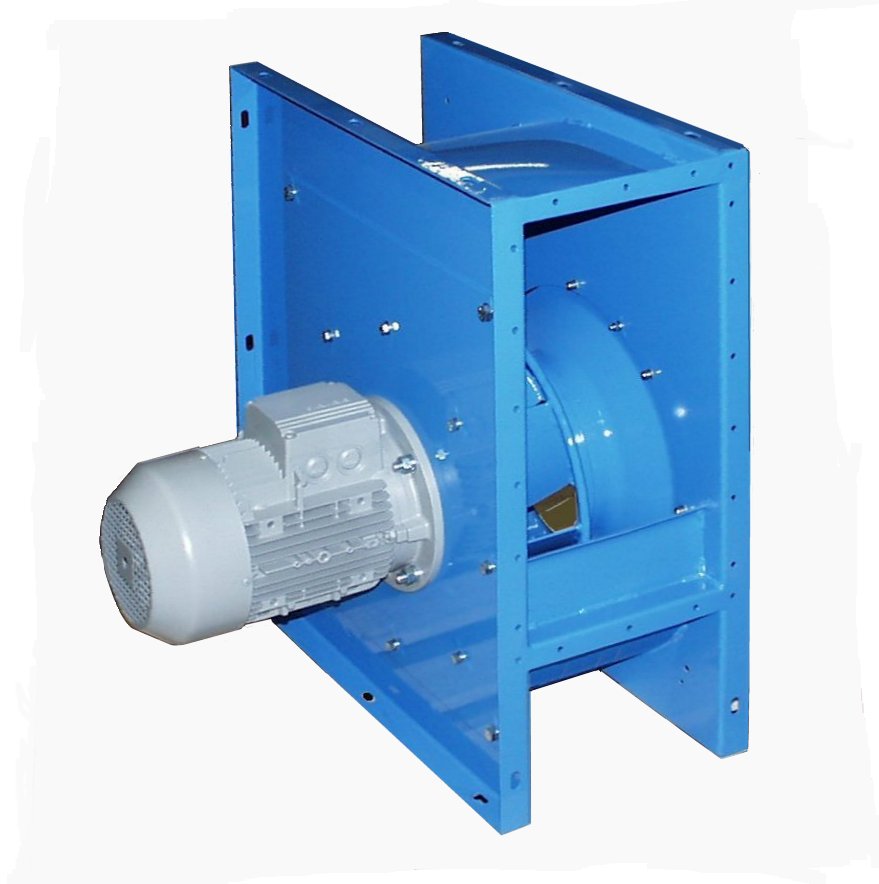

THLE/BAFE Single Inlet Industrial Radial Fan With Backward Curved Blades

—THLE：Backward curved，belt driven or direct driven

  Size from 200 to 1，000mm(Impeller diameter)

  Air volume from 500 to 200，000m3/h

  Ps max=3，400Pa

—BAFE：Airfoil，belt driven or direct driven

 Other parameters are the same with THLE.

—The industrial radial fan serie BAFE, with airfoil backward curved blades, is suited for application for clean air with temperatures of up to 80°
